SplineAlignedImage – HTML5 Experiment

Hi there! O oh, long time, no blog entry: well, that happens but it doesn’t mean I haven’t done plenty of Flash and image processing stuff lately.
I also know I’ve been really lazy answering all the comments or questions you’re posted here.

Anyway, I have also done some HTML5 – graphics stuff with canvas-element mostly.
So here’s a demo with sources for SplineAlignedImage. That generates a spline, cubic or quadratic, and renders a bitmap image along it.
Or simply put: if this is the source:
Image of a link in chain
the result will be this:

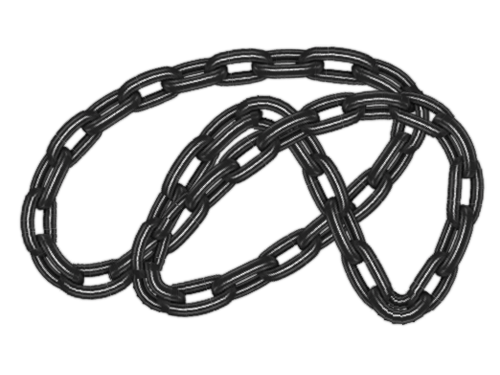

Image of a curved chain

Clicking the image above opens the demo, try dragging the grips on canvas, changing the scaling and positioning and check out the results of using different bitmaps as sources.

I have done something very similar already earlier with actionscript.

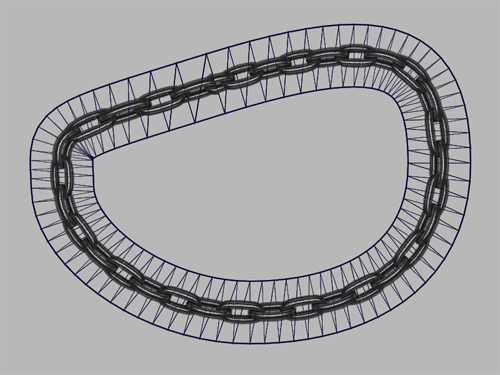

The principle is simply to place a dense stripe of triangles along the curve, and draw the image with correct displacement on each triangle:

example of divisions

From the demo you’ll also find the sources.
A code example of using this class:

// check that canvas-element and its graphics context exists
elem = document.getElementById('splineImageCanvas');
if (!elem || !elem.getContext) return;

context = elem.getContext('2d');
if (!context) return;

// Define the SplineAlignedImage-object and set image source for it
var splineImage = new SplineAlignedImage(context);
splineImage.image = img;

// And start drawing, methods are similar to javascript for canvas element
splineImage.moveTo(x0, y0);
splineImage.bezierCurveTo(x1,y1, x2,y2, x3,y3);

// if coordinates for the first control point are null, the curve will follow the tangent of previous sequence:
splineImage.bezierCurveTo(null,null, x4,y4, x5,y5);

// there's also the quadratic version of curve
splineImage.quadraticCurveTo(x6,y6, x7,y7);
splineImage.quadraticCurveTo(null,null, x8,y8);

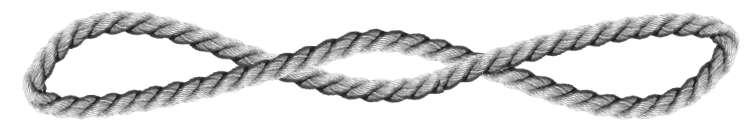

Image of a curved rope
( tested in mac: Safari, Firefox, linux: Firefox )
